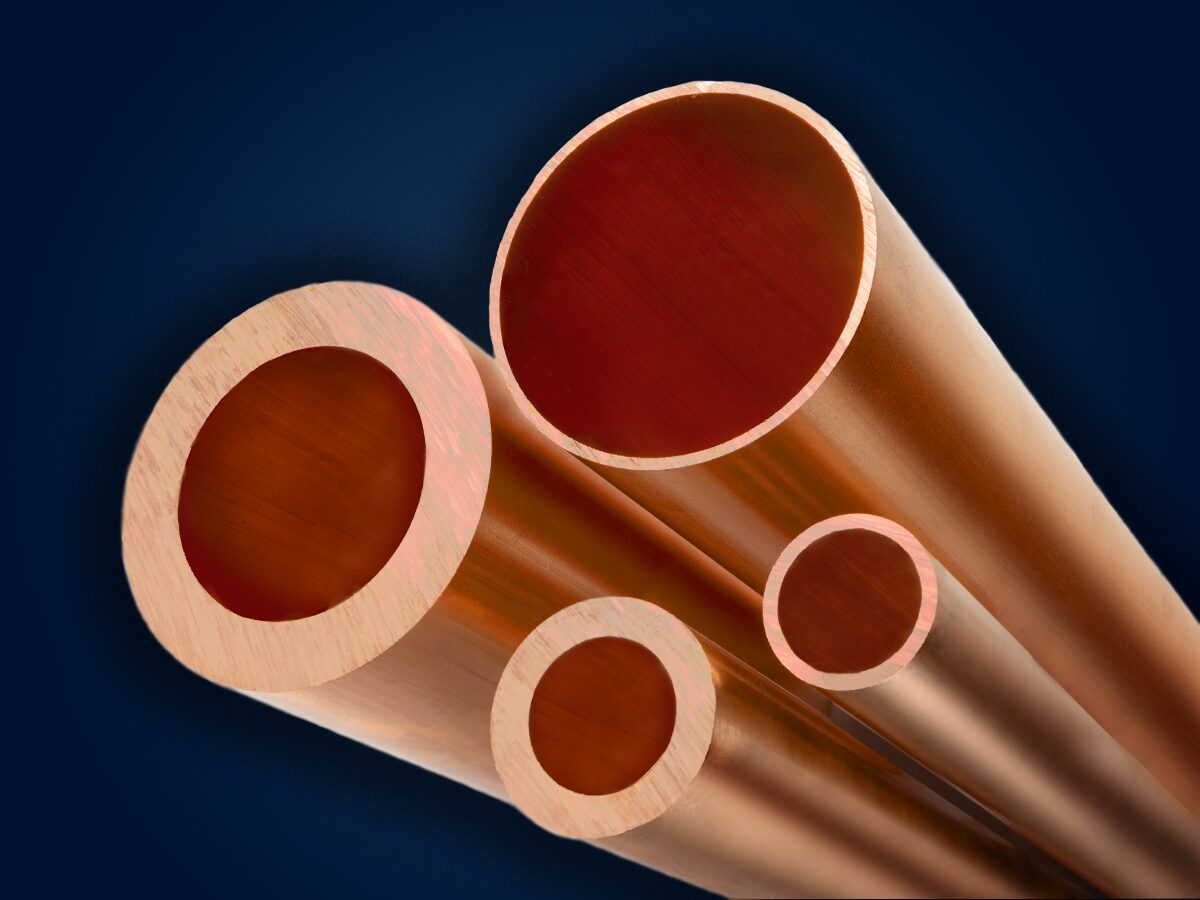

Shiny copper tubes in various diameters

Tubes

Where electrical and thermal conductivity are of highest importance Luvata's oxygen-free copper tubes are the first choice.

Share
Share to Facebook Share to Twitter Share to LinkedIn

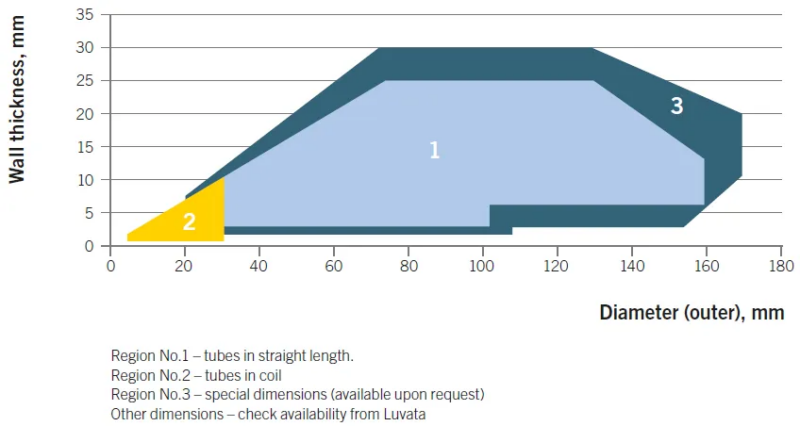

Toughness and ductility of oxygen-free copper make it ideal material for phase rings of power generators and other electrical and electronic components. Tubes are available in wide array of sizes and dimensions.

Alloys expander header icon

Standard grade OF-OK® oxygen-free copper is the best choice for most of the applications. Small addition of silver increases the softening and relaxation temperature, creep and fatigue strength in elevated temperature copper without significant loss of electrical conductivity. Silver bearing grades CuAg0,04% and CuAg0,1% are recommended for elevated temperature applications where the material is presumed to have load bearing capacity. OFE-OK® electronic grade copper is recommended for vacuum applications.

see OFE Copper Products



AlloyENASTMElectrical conductivityThermal conductivity
   MS/mIACS% W/Km
OFE-OKCW009AC1010058,6101,5391
OF-OKCW008AC1020058,3100390
CuAg0.04(OF)CW017A C10400 57,7  99,5388
CuAg0.10(OF)CW019AC1070057,799,5388





Applications expander header icon
  • Power generators
  • Electronic components
  • High-vacuum devices
  • Wave guides
  • Medical devices
  • Microwave transmitters
Specifications expander header icon

EN 13600 ‘Copper and copper alloys. Seamless copper tubes for electrical purposes’

ASTM B75 ‘Standard Specification for Seamless Copper Tube’

MIG welding tubes expander header icon

Tubes for MIG welding and brazing are made of phosphorus deoxidized copper EN CW024A and ASTM C12200. Tubes are manufactured by cold drawing using mandrel inside the tube. As a result the ID surface is very smooth and precise in dimension.

Available tube forms; round, hexagonal and oval.



Contact tip tubes in various shapes and holes



OD mmID mm
50,8-1,9
60,8-2,3
80,8-2,3
101,0-2,3
121,9-2,7
