Commutator Copper

Luvata's commutator strips, profiles, bars and wires offer higher softening temperature and improved properties

Share
Share to Facebook Share to Twitter Share to LinkedIn

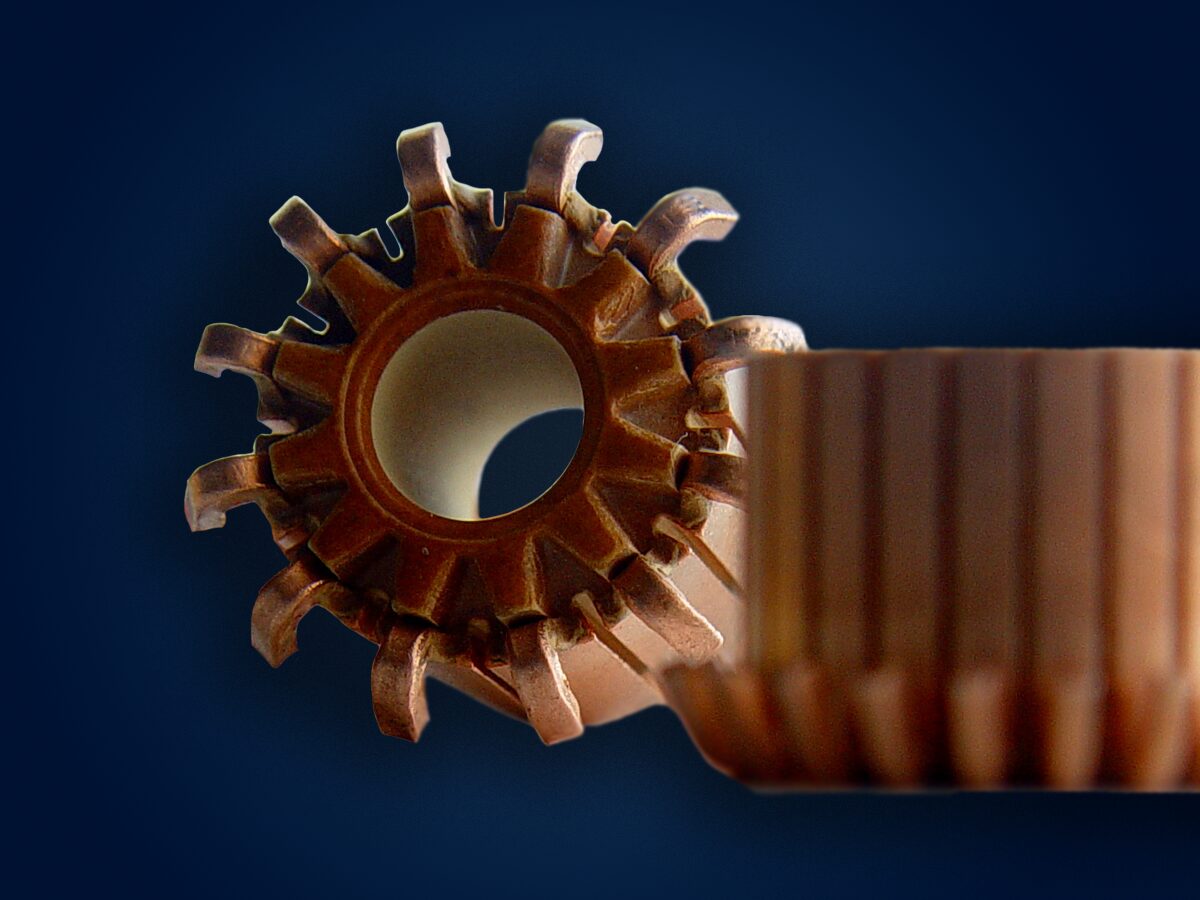

The alloy used in commutators is typically silver bearing OF-Copper. By alloying copper with silver the softening and other properties of the material are improved substantially.

Luvata offers various silver bearing copper grades that are based on OF-OK® oxygen-free copper. OF-OK material consistency is crucial for the manufacturer who wants to improve the effiency of their processes.

Commutator profiles expander header icon

Long experience in tooling design and copper product development has resulted in our profile products being accurately matched to cuostomer's specifications and processes.

Tooling design is based on comprehensive process understanding and process control.

copper commutator profiles in different shapes and sizes

Commutator strip in coils expander header icon

Excellent consistency, machineability and cleanliness of out strips enable good stamping behaviours. Strict tolerances and reliable process control guarantee satisfied
results in our customers' manufacturing processes.

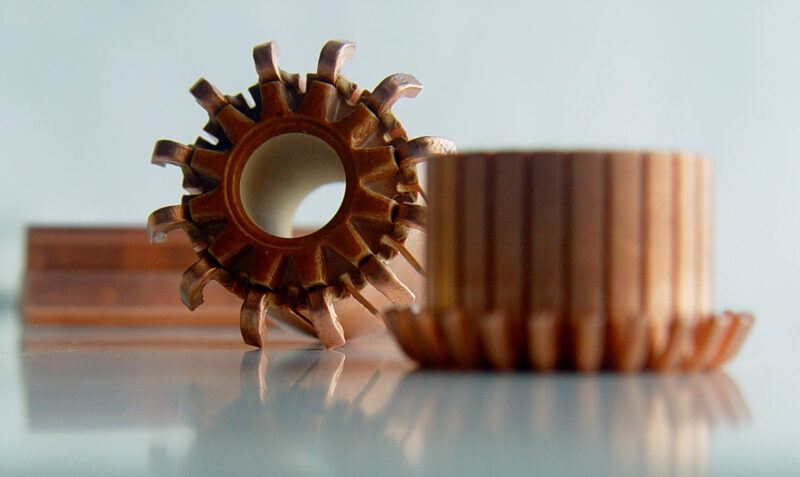

three different shapes commutators with copper      copper commutator strips    commutator strip in coil


Strip dimensions
Thickness (mm) Width (mm)
 0,10-0,50mm 1,5-5,0mm
 1,50-8,00mm 8,00-80,00mm





Technical data expander header icon



AlloyENASTMElectrical conductivityThermal conductivity
MS/mIACS%W/Km
OFE-OKCW009AC1010058,6101,5391
OF-OKCW008AC1020058,3100390
CuAg0.04(OF)CW017AC1040057,799,5388
CuAg0.10(OF)CW019AC1070057,799,5388
